Cabulator Help - Connector Orientation

Default Connector Orientation.

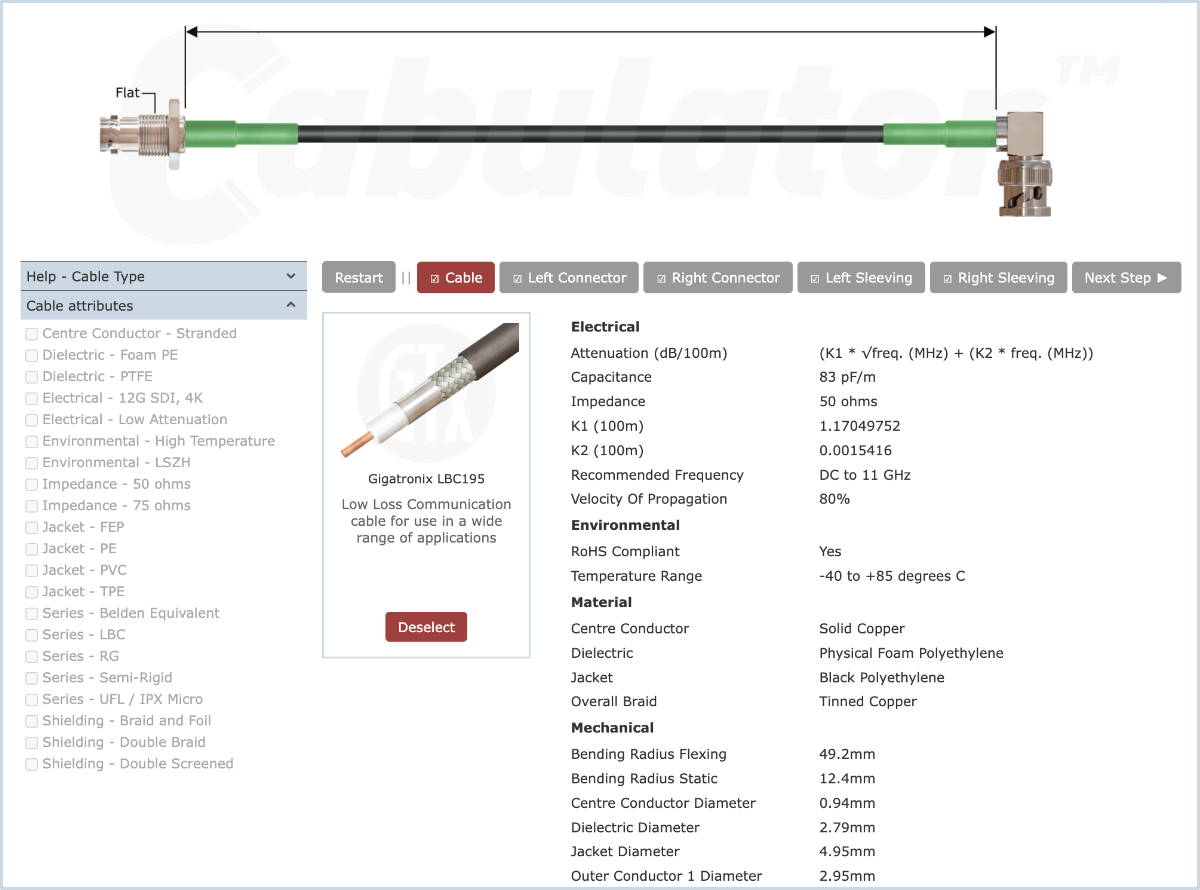

Cab Help, Connector Default Orientation
Non-symmetrical connectors require an orientation. Default orientations are Right Angle Connectors face downward and any connector with a flat (for a panel cut out), will be positioned with the flat facing upwards.

How to define connector orientation.

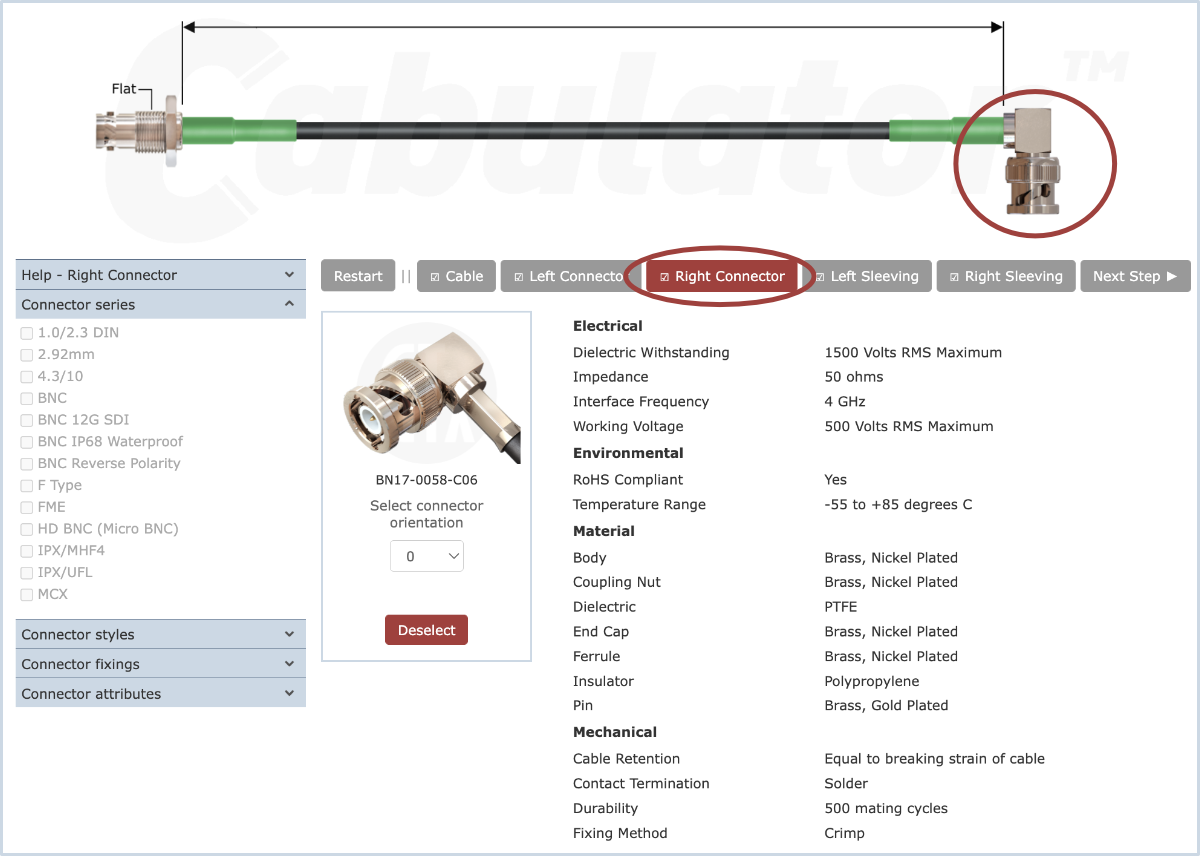

Cab Help, Connector Orientation
If the default orientation isn't suitable for your application you can define your own. To do this, select the right connector (the orientation of the left connector is 'fixed') by either clicking on the connector or on the 'Right Connector' button.

Selecting Connector Orientation

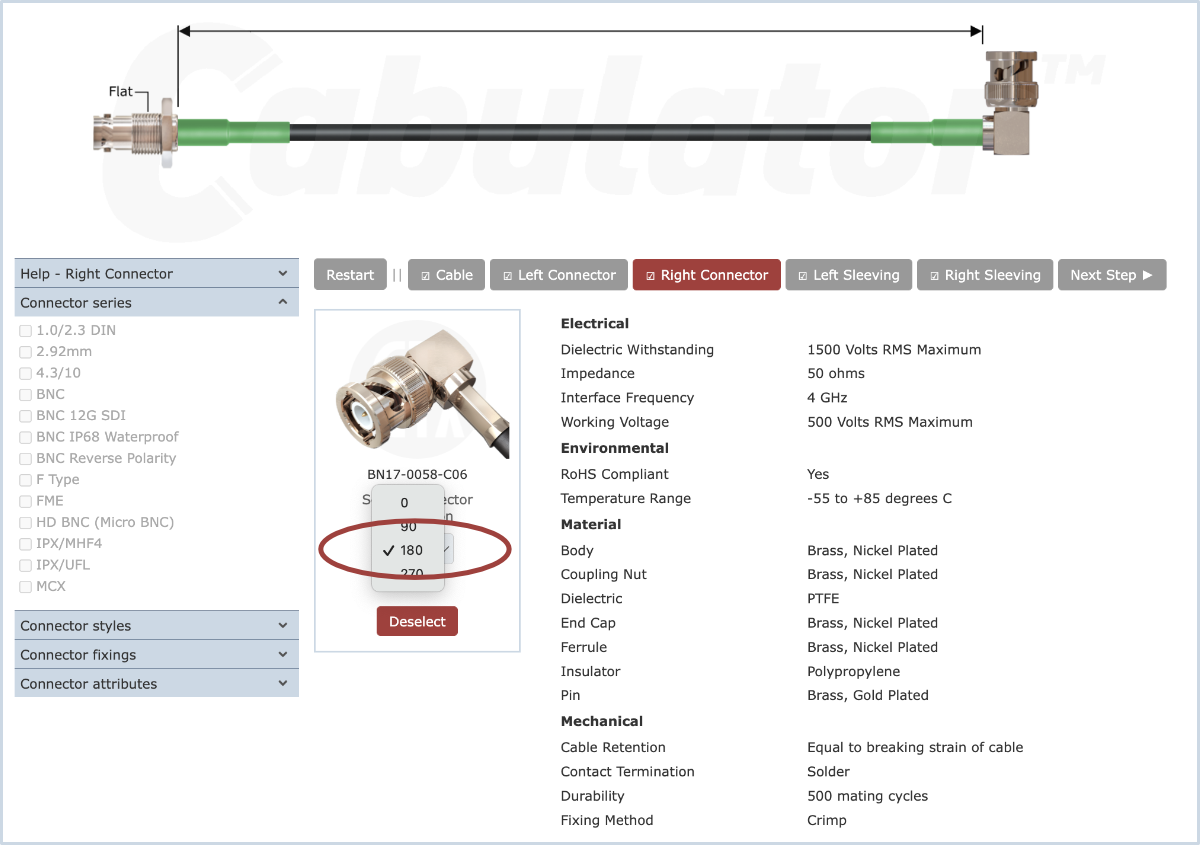

Cab Help, Connector Orientation Select
From the drop down menu under the connector details, select the desired orientation.
When the orientation has been selected, you can click on "Next Step'
