HD BNC HDTV Crimp Plug, terminated on cable

▣

Overview

Part Number

7JX10Z2CP0B2X6-305

Description

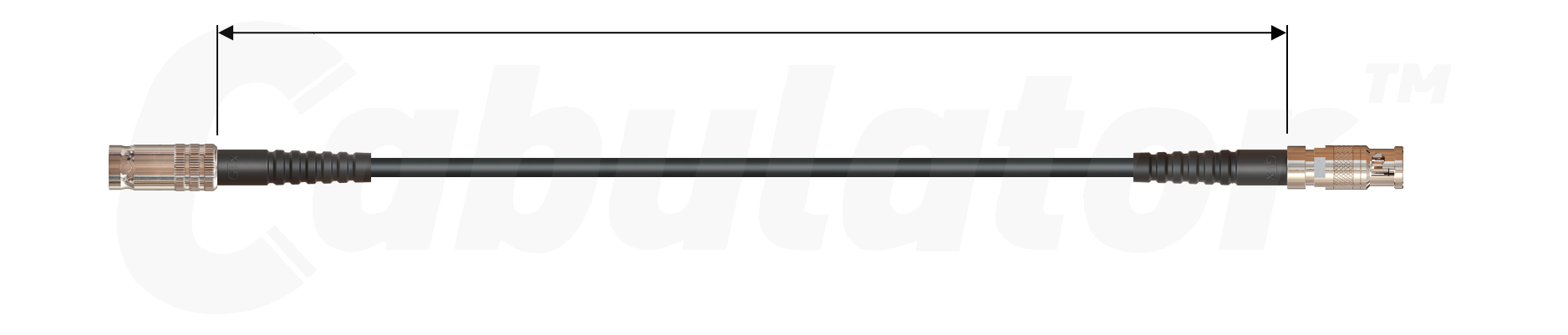

BNC 12G SDI Straight Jack to HD BNC Straight Plug, Gigatronix UHD75-M59XF, 305mm

Cable

Gigatronix UHD75-M59XF

Left Connector

Right Connector

Left Sleeving

Right Sleeving

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

There is enough component stock to manufacture 269 pieces of your cable assembly. These would typically be despatched as follows:

10	2-3 weeks
30	8-9 weeks
100	11-12 weeks
269	11-12 weeks

▣

Pricing

1 off	£35.18 each
3 off	£24.07 each
5 off	£19.33 each
10 off	£14.97 each
30 off	£12.46 each
50 off	£11.63 each
100 off	£10.89 each
300 off	£10.30 each

▣

Alternatives and Associated Products

◄

►

BN10-4855-C06-Z

BNC 12G SDI Crimp Jack, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

HD15-4855-C06-Z

HD BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, 4855R, L-2.5CHD

GSB-M59-0

Strain Relief Boot for SDI-M59, 4.52mm Hex, Black

UHD75-M59XF-100

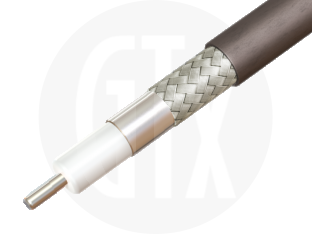

12G-SDI, 4K, Mini RG59 Digital Video Cable, 0.6/2.6, TPE Jacket, supplied on 100 metre drums

UHD75-M59XF-30

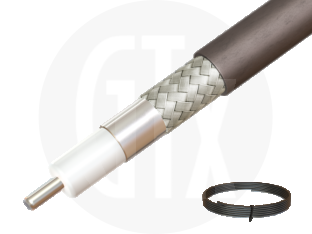

12G-SDI, 4K, Mini RG59 Digital Video Cable, 0.6/2.6, TPE Jacket, supplied as a 30 metre coil

UHD75-M59XF-305

12G-SDI, 4K, Mini RG59 Digital Video Cable, 0.6/2.6, TPE Jacket, supplied on 305 metre drums
