Coaxial Connectors | Gigatronix

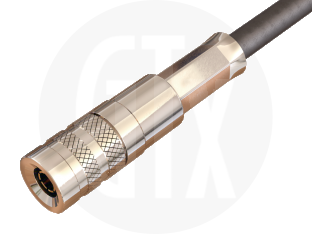

1.0/2.3 DIN

Push-pull micro-miniature connectors, including 12G SDI/4K compliant designs for precision Broadcasting applications

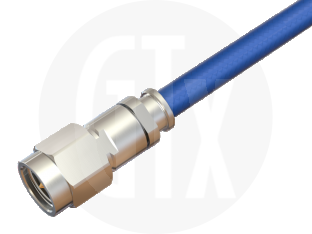

2.92mm

Threaded style, high frequency precision subminiature connector for applications from DC to 40GHz

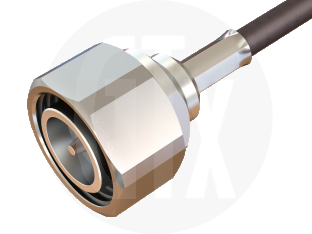

4.3/10

Low PIM threaded connector designed operate up to 6 GHz. Primarily used in mobile phone network equipment

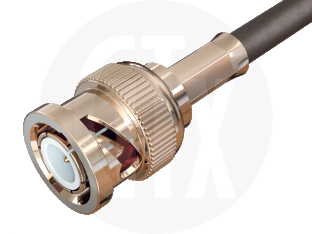

BNC

Bayonet style miniature connectors, available to suit an extensive range of industry standard cables

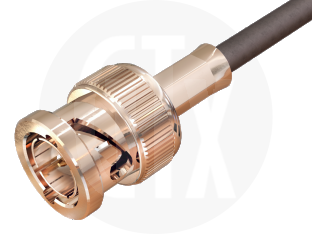

BNC 12G SDI

Bayonet style miniature connectors, 12G SDI/4K compliant for precision Broadcasting applications

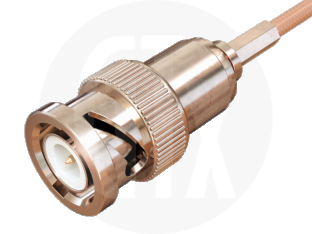

BNC IP68 Waterproof

Bayonet style miniature connectors, fully waterproof and ingress protected in a mated and unmated condition

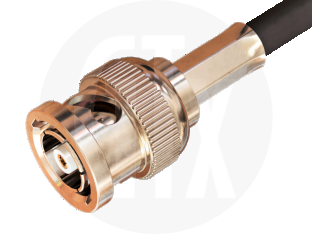

BNC Reverse Polarity

Bayonet style miniature connectors with reversed mating faces to prevent accidental connections with standard BNC

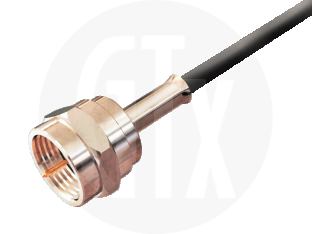

F Type

Threaded style miniature connector commonly used in Cable TV, Satellite and Broadcast applications

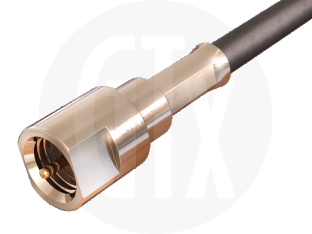

FME

Threaded style miniature connector commonly employed in Mobile applications and installations

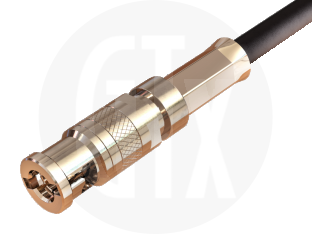

HD BNC (Micro BNC)

Bayonet style micro-miniature connectors, 12G SDI/4K compliant for precision Broadcasting applications

Interseries Adaptor

Used for changing interface styles and genders, or as connector savers. Available in a wide range of configurations

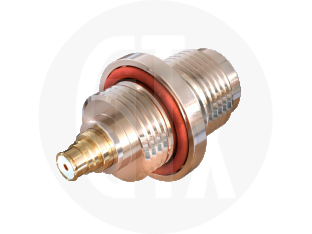

Interseries Adaptor - IP68

Suitable for outdoor and harsh environment applications. Available in a wide range of configurations

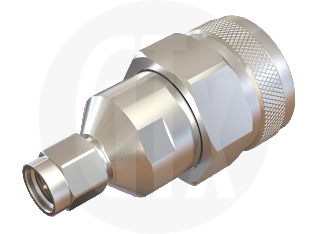

Interseries Adaptor - Precision

Precision 75 ohm Interface typically used for Broadcast applications

IPX/MHF4

Snap-fit micro miniature RF connectors commonly used in wireless applications, compatible with Murata HSC

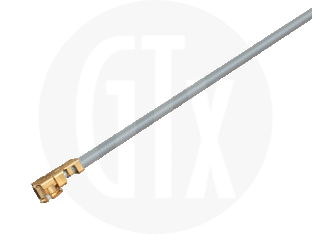

IPX/UFL

Snap-fit micro miniature RF connectors commonly used in wireless applications, particularly where space is limited

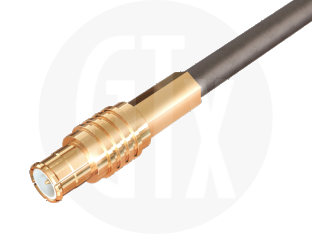

MCX

Micro miniature snap fit connectors for a broad range of applications DC to 6GHz

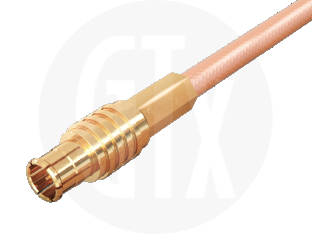

MCX 75 ohm

75 ohm micro miniature snap fit connectors including 12G SDI compliant designs for precision broadcast applications

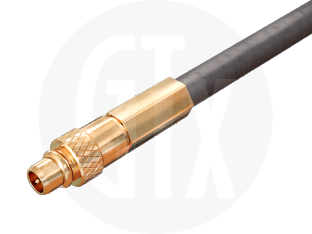

MMCX

Micro miniature snap fit connectors. All the features of MCX connectors but with a smaller footprint

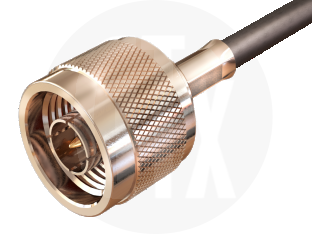

N Type

Medium size threaded connector, available to suit an extensive range of industry standard cables

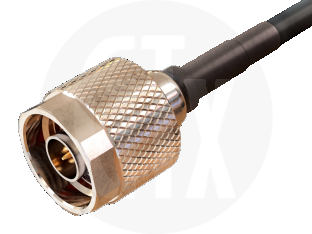

N Type IP68 Waterproof

Fully waterproof and ingress protected in a mated and unmated condition. Suitable for harsh environments

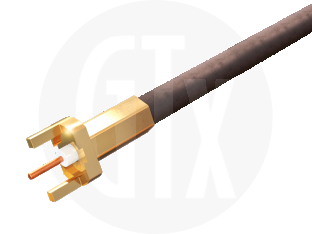

PCB Termination

A quick and easy cost effective solution for soldering cable directly to a PCB

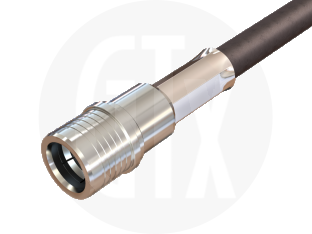

QMA

Snap Fit version of SMA connectors allowing quick mating and de-mating without tools.

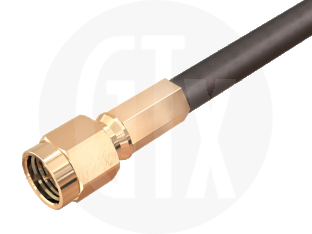

SMA

A sub-miniature thread coupling connector, for flexible and semi-rigid cables

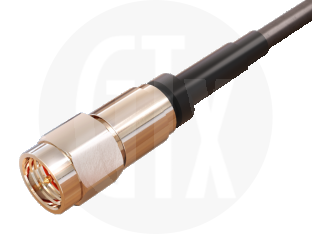

SMA IP68 Waterproof

Threaded style sub-miniature connectors, fully waterproof and ingress protected in a mated and unmated condition

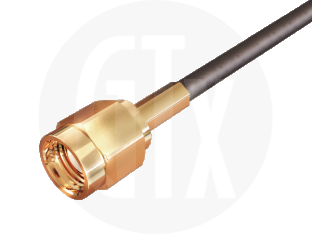

SMA Reverse Polarity

Threaded style sub-miniature connectors with reversed mating faces to prevent accidental connections with standard SMA

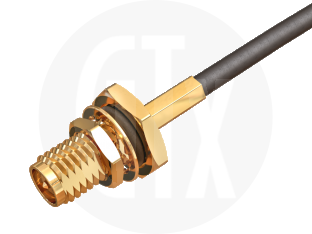

SMA RP IP68 Waterproof

Threaded style RP sub-miniature connectors, fully waterproof and ingress protected in a mated and unmated condition

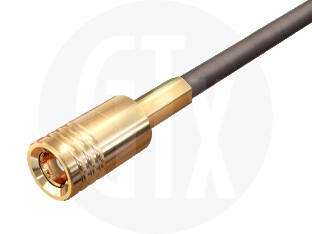

SMB

A sub-miniature snap-fit connector, for applications up to 4GHz

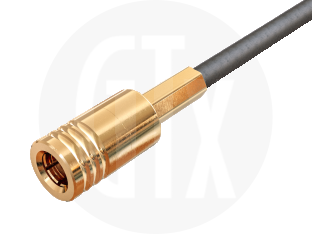

SMB 75 ohm

75 ohm sub-miniature snap-fit connector, for applications up to 2GHz

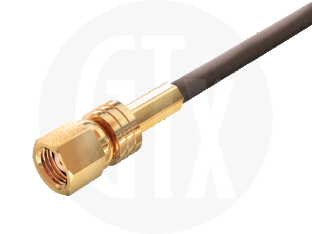

SMC

Threaded style subminiature connector. Ideal for applications from DC to 10GHz

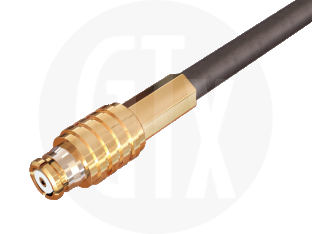

SMP

Sub-miniature snap fit connectors with a wide range of applications from DC to 40GHz

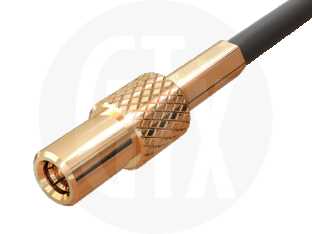

SSMB

A space saving alternative to standard SMB connectors

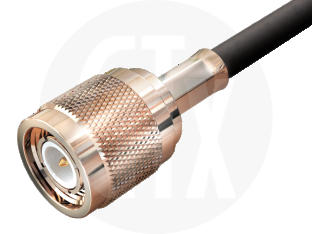

TNC

Threaded style miniature connectors, available to suit an extensive range of industry standard cables

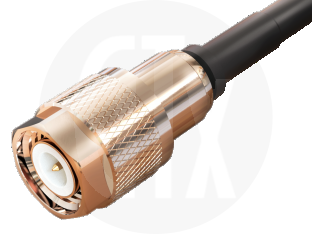

TNC IP68 Waterproof

Threaded style miniature connectors, fully waterproof and ingress protected in a mated and unmated condition

TNC Reverse Polarity

Threaded style miniature connectors with reversed mating faces to prevent accidental connections with standard TNC

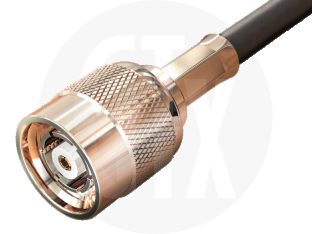

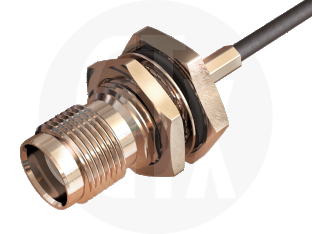

TNC RP IP68 Waterproof

Threaded style RP miniature connectors, fully waterproof and ingress protected in a mated and unmated condition.

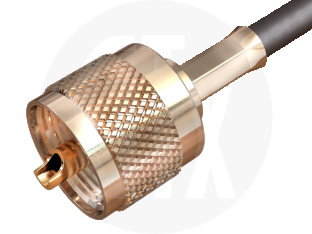

UHF

Threaded style connector typically used in low frequency radio applications
