Products | Coaxial Cable | Part Number: CX50-178-30
Description

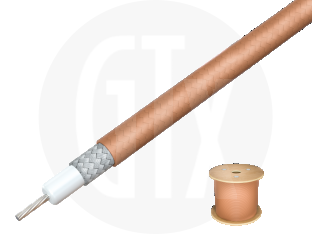

RG178 Coaxial Cable, supplied as a 30 metre coil
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Recommended Frequency
DC to 3 GHz
Velocity Of Propagation
70%
Environmental
Temperature Range
-55 to +200 degrees
Material
Centre Conductor
Silver Plated Copper Clad Steel
Overall Braid
Silver Plated Copper
Mechanical
Bending Radius Flexing
27mm
Bending Radius Static
10mm
Centre Conductor Diameter
7 x 0.102mm
Dielectric Diameter
0.86mm
Outer Conductor 1 Diameter
1.30mm
| UK stock |
0 |
| Pending (details) |
1 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£43.95 each |
| 3 off |
£41.43 each |
| 5 off |
£37.90 each |
| 10 off |
£37.83 each |
| 30 off |
£37.79 each |
| UK stock |
0 |
| Pending (details) |
1 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£43.95 each |
| 3 off |
£41.43 each |
| 5 off |
£37.90 each |
| 10 off |
£37.83 each |
| 30 off |
£37.79 each |
