Products | Coaxial Cable | Part Number: CX50-214-30
Product Overview
Part Number
CX50-214-30
Description

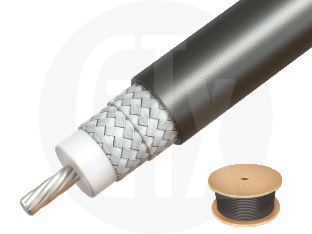

RG214 Coaxial Cable, supplied on 30 metre drums
Specifications
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Capacitance
101 pF/m
Impedance
50 ohms
K1 (100m)
0.52808
K2 (100m)
0.0041328
Recommended Frequency
DC to 11 GHz
Velocity Of Propagation
66%
Environmental
RoHS Compliant
Yes
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Silver Plated Copper
Dielectric
Polyethylene
Jacket
Black PVC
Overall Braid
Silver Plated Copper x 2
Mechanical
Bending Radius Flexing
108mm
Bending Radius Static
55mm
Centre Conductor Diameter
7 x 0.75mm
Dielectric Diameter
7.24mm
Jacket Diameter
10.80mm
Outer Conductor 1 Diameter
7.80mm
Outer Conductor 2 Diameter
8.30mm
Weight
189 gms/m
Documents
Order
UK stock 0
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £223.59 each
3 off £210.76 each
5 off £192.80 each
10 off £192.43 each
30 off £192.25 each
Order
UK stock 0
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £223.59 each
3 off £210.76 each
5 off £192.80 each
10 off £192.43 each
30 off £192.25 each
