Products | Coaxial Cable | Part Number: CX50-405CFEP-6-30
Product Overview
Part Number
CX50-405CFEP-6-30
Description

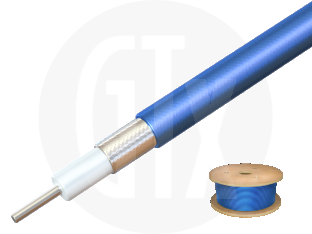

RG405 Conformable FEP Coaxial Cable, supplied as a 30 metre coil
Specifications
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Capacitance
95 pF/m
Impedance
50 ohms
K1 (100m)
1.8532
K2 (100m)
0.003936
Recommended Frequency
DC to 61 GHz
Velocity Of Propagation
70%
Voltage Withstanding
1500V RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-65 to +125 degrees C
Material
Centre Conductor
Silver Plated Copper Clad Steel
Dielectric
PTFE
Jacket
Blue FEP
Outer Conductor
Tin Soaked Copper Braid
Mechanical
Bending Radius Flexing
20mm
Bending Radius Static
6mm
Centre Conductor Diameter
0.52mm
Dielectric Diameter
1.65mm
Jacket Diameter
2.50mm
Outer Conductor 1 Diameter
2.15mm
Weight
17 gms/m
Documents
Order
UK stock 50
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £120.07 each
3 off £113.18 each
5 off £103.53 each
10 off £103.34 each
30 off £103.24 each
Order
UK stock 50
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £120.07 each
3 off £113.18 each
5 off £103.53 each
10 off £103.34 each
30 off £103.24 each
