Part Number
CX50-LBC195-30
Description

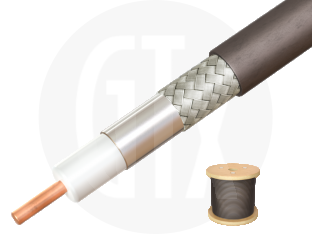

LBC195 Low Loss Coaxial Cable, supplied as a 30 metre coil
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Recommended Frequency
DC to 11 GHz
Velocity Of Propagation
80%
Voltage Withstanding
1000V RMS Maximum
Environmental
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Solid Copper
Dielectric
Physical Foam Polyethylene
Jacket
Black Polyethylene
Overall Braid
Tinned Copper
Mechanical
Bending Radius Flexing
50mm
Bending Radius Static
15mm
Centre Conductor Diameter
0.94mm
Dielectric Diameter
2.79mm
Outer Conductor 1 Diameter
2.95mm
Outer Conductor 2 Diameter
3.35mm
| UK stock |
110 |
| Pending (details) |
320 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£31.09 each |
| 3 off |
£29.31 each |
| 5 off |
£26.81 each |
| 10 off |
£26.76 each |
| 30 off |
£26.74 each |
| UK stock |
110 |
| Pending (details) |
320 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£31.09 each |
| 3 off |
£29.31 each |
| 5 off |
£26.81 each |
| 10 off |
£26.76 each |
| 30 off |
£26.74 each |
