Product Overview
Part Number
CX50-LBC195LSZH-30
Description

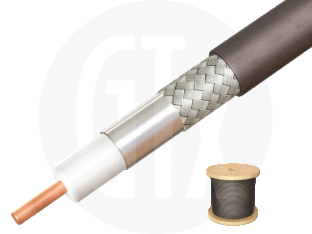

LBC195 Low Smoke Zero Halogen Low Loss Coaxial Cable, supplied as a 30 metre coil
Specifications
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Capacitance
83 pF/m
Impedance
50 ohms
K1 (100m)
1.17049752
K2 (100m)
0.0015416
Recommended Frequency
DC to 11 GHz
Velocity Of Propagation
80%
Voltage Withstanding
1000V RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Solid Copper
Dielectric
Physical Foam Polyethylene
Jacket
LSZH Black PE
Outer Conductor
Bonded Aluminium Foil
Overall Braid
Tinned Copper
Mechanical
Bending Radius Flexing
50mm
Bending Radius Static
15mm
Centre Conductor Diameter
0.94mm
Dielectric Diameter
2.79mm
Jacket Diameter
4.95mm
Outer Conductor 1 Diameter
2.95mm
Outer Conductor 2 Diameter
3.35mm
Weight
36 gms/m
Documents
Order
UK stock 140
Pending () 0
Minimum order quantity 1
Pricing

Length: 30

1 off £33.45 each
3 off £31.53 each
5 off £28.84 each
10 off £28.78 each
30 off £28.76 each
