Product Overview
Part Number
CX50-LBC240-30
Description

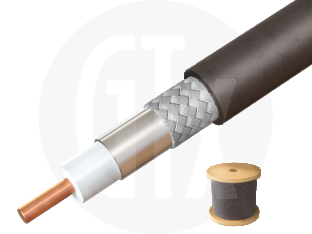

LBC240 Low Loss Coaxial Cable, supplied as a 30 metre coil
Specifications
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Capacitance
77.5 pF/m
Impedance
50 ohms
K1 (100m)
0.7940224
K2 (100m)
0.0010824
Recommended Frequency
DC to 11 GHz
Velocity Of Propagation
84%
Voltage Withstanding
1500V RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Solid Copper
Dielectric
Physical Foam Polyethylene
Jacket
Black Polyethylene
Outer Conductor
Bonded Aluminium Foil
Overall Braid
Tinned Copper
Mechanical
Bending Radius Flexing
63.5mm
Bending Radius Static
19mm
Centre Conductor Diameter
1.42mm
Dielectric Diameter
3.81mm
Jacket Diameter
6.10mm
Outer Conductor 1 Diameter
3.94mm
Outer Conductor 2 Diameter
4.52mm
Weight
50 gms/m
Documents
Order
UK stock 250
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £39.16 each
3 off £36.91 each
5 off £33.77 each
10 off £33.70 each
30 off £33.67 each
Order
UK stock 250
Pending 0
Minimum order quantity 1
Pricing

Length: 30

1 off £39.16 each
3 off £36.91 each
5 off £33.77 each
10 off £33.70 each
30 off £33.67 each
