Browse for other connectors

▣

Product Overview

Part Number

15A-0B-07-35

Series

Style

Plug - Straight

Description

0B Cable Fixing Plug, 7 x Male Contacts, Chrome Plated. 2.5 to 3.5 mm Cable.

Primary Fixing

▣

Specifications

Electrical

Contact Resistance

7.5 mOhm (After 1000 Mating Cycles)

Rated Current

2.5 Amp

Screening Continuity

3.5 mOhm (Body shell to shell)

Test Voltage

700 Volts

Environmental

IP Rating

IP50

Temperature Range

-45 to +125 degrees C

Material

Body

Brass, Matt Chrome Plated

Contact Block

PPS

Contacts

Brass, Gold Plated

Mechanical

Contact Gender

Male

Durability

>5000 Mating Cycles

To Fit Cable Types

7 Core. Max Conductor 28AWG. Cable Jacket O.D 2.5-3.5mm

▣

Documents

B Series Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	50
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	$9.91 each
10 off	$9.46 each
50 off	$9.28 each
100 off	$9.19 each
300 off	$9.10 each

▣

Order

UK stock	50
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	$9.91 each
10 off	$9.46 each
50 off	$9.28 each
100 off	$9.19 each
300 off	$9.10 each

▣

Product Overview

Part Number

15A-0B-07-35

Series

Style

Plug - Straight

Description

0B Cable Fixing Plug, 7 x Male Contacts, Chrome Plated. 2.5 to 3.5 mm Cable.

Primary Fixing

▣

Specifications

Electrical

Contact Resistance

7.5 mOhm (After 1000 Mating Cycles)

Rated Current

2.5 Amp

Screening Continuity

3.5 mOhm (Body shell to shell)

Test Voltage

700 Volts

Environmental

IP Rating

IP50

Temperature Range

-45 to +125 degrees C

Material

Body

Brass, Matt Chrome Plated

Contact Block

PPS

Contacts

Brass, Gold Plated

Mechanical

Contact Gender

Male

Durability

>5000 Mating Cycles

To Fit Cable Types

7 Core. Max Conductor 28AWG. Cable Jacket O.D 2.5-3.5mm

▣

Documents

B Series Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

0B Series Plug Housing

0B Series, Plug Housing only, Matt Chrome Plating

0B Series Collet

0B Series, Collet Type 35

Strain Relief Boot 0B Series

0B Series Strain relief Boot, PUR - Black. Cable Diameters 2.5 to 3.5mm

0B Series Insulator

0B Series, Contact Block, Male/Solder, 7 pole

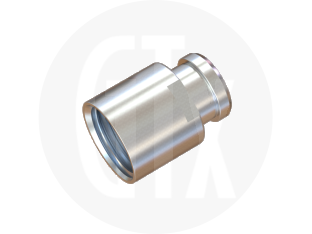

0B Series Backnut

0B Series, Backnut - Suitable for use with Strain Relief Boot

0B Series Split Insert Spacer

0B Series, Split Insert Spacer, A

0B Series Split Insert Spacer

0B Series, Split Insert Spacer, B
