Part Number

BN02-X60C-N06-Z

Series

BNC 12G SDI

Style

Jack - Right Angle Bulkhead

Description

BNC 12G SDI Right Angle PCB Mount Bulkhead Jack, Nickel Plated, PTFE Dielectric, 75 ohms, Circ. Nut

Primary Fixing

PCB Mounting

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Locknut

Brass, Nickel Plated

Washer

Phosphor Bronze, Nickel Plated

Mechanical

Contact Gender

Female

Durability

500 mating cycles

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	1
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£9.69 each
10 off	£7.74 each
50 off	£7.04 each
100 off	£6.68 each
300 off	£6.37 each

▣

Order

UK stock	1
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£9.69 each
10 off	£7.74 each
50 off	£7.04 each
100 off	£6.68 each
300 off	£6.37 each

▣

Product Overview

Part Number

BN02-X60C-N06-Z

Series

BNC 12G SDI

Style

Jack - Right Angle Bulkhead

Description

BNC 12G SDI Right Angle PCB Mount Bulkhead Jack, Nickel Plated, PTFE Dielectric, 75 ohms, Circ. Nut

Primary Fixing

PCB Mounting

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Locknut

Brass, Nickel Plated

Washer

Phosphor Bronze, Nickel Plated

Mechanical

Contact Gender

Female

Durability

500 mating cycles

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

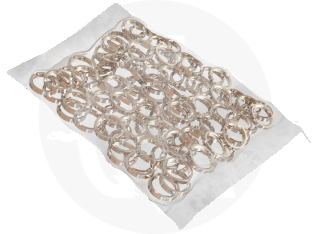

NUT-DIA15-6-2.5MM-100
