Coaxial Connector BN15-4855-C06D-Z - BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

BN15-4855-C06D-Z

Series

BNC 12G SDI

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Primary Fixing

Crimp

A precision 75 ohm BNC Crimp Plug designed to carry 12G-SDI (Serial Digital Interface) 4K signals on a single channel.

Designed to suit cables types; Gigatronix HD75-M59, UHD75-M59, UHD75-M59XF, Belden 1855A, 4855R, 4855P

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Brass, Gold Plated

Spring

VK5

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	4.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	191
Taiwan stock	7692
Pending (details)	0
Minimum order quantity	1

▣

Pricing

1 off	£3.04 each
10 off	£2.43 each
50 off	£2.21 each
100 off	£2.10 each
300 off	£2.00 each

▣

Order

UK stock	191
Taiwan stock	7692
Pending (details)	0
Minimum order quantity	1

▣

Pricing

1 off	£3.04 each
10 off	£2.43 each
50 off	£2.21 each
100 off	£2.10 each
300 off	£2.00 each

▣

Product Overview

Part Number

BN15-4855-C06D-Z

Series

BNC 12G SDI

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Brass, Gold Plated

Spring

VK5

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	4.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

GSB-M59-0

Strain Relief Boot for SDI-M59, 4.52mm Hex, Black

GSB-M59-2

Strain Relief Boot for SDI-M59, 4.52mm Hex, Red

GSB-M59-4

Strain Relief Boot for SDI-M59, 4.52mm Hex, Yellow

GSB-M59-5

Strain Relief Boot for SDI-M59, 4.52mm Hex, Green

GSB-M59-6

Strain Relief Boot for SDI-M59, 4.52mm Hex, Blue

GSB-M59-7

Strain Relief Boot for SDI-M59, 4.52mm Hex, Violet

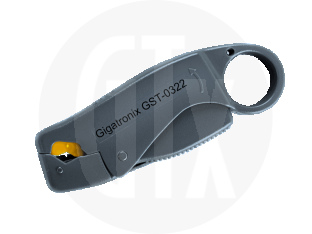

GST-0322

3 Blade Stripping Tool for 12G SDI BNC Crimp Plugs

GT-0628-BN15

BNC Mounting Tool - Hand Tool for mating and unmating of BNC Plugs

HD75-M59-305

6G-SDI Mini RG59 Digital Video Cable, 0.6/2.6, supplied on 305 metre drums

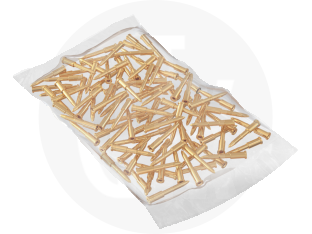

PIN-4855-BN-1D-100
