BNC
|
Plug to Jack - Right Angle Adaptor
|
None
Browse for other connectors
▣
Product Overview
Part Number
BN17-10-A06-1
Series
BNC
Style
Plug to Jack - Right Angle Adaptor
Description

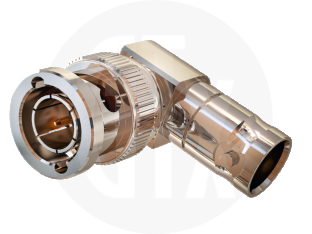

BNC Right Angle Plug to Jack Adaptor, Nickel Plated, 75 ohms
Primary Fixing
None
▣
Specifications
Electrical
Dielectric Withstanding
1500 Volts RMS Maximum
Impedance
75 ohms
Working Voltage
500 Volts RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-55 to +85 degrees C
Material
Body
Brass, Nickel Plated
Contact
Brass, Gold Plated
Coupling Nut
Brass, Nickel Plated
Dielectric
Delrin
Pin
Brass, Gold Plated
Mechanical
Durability
500 mating cycles
▣
Documents
Certificate of Conformance
REACH Policy and Statement
RoHS Certificate of Compliance
▣
Order
This product is no longer stocked.
For alternatives please see the part numbers listed below.
BN17-10-A06-Z
▣
Order
This product is no longer stocked.
For alternatives please see the part numbers listed below.
BN17-10-A06-Z
▣
Product Overview
Part Number
BN17-10-A06-1
Series
BNC
Style
Plug to Jack - Right Angle Adaptor
Description
BNC Right Angle Plug to Jack Adaptor, Nickel Plated, 75 ohms
Primary Fixing
None
▣
Specifications
Electrical
Dielectric Withstanding
1500 Volts RMS Maximum
Impedance
75 ohms
Working Voltage
500 Volts RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-55 to +85 degrees C
Material
Body
Brass, Nickel Plated
Contact
Brass, Gold Plated
Coupling Nut
Brass, Nickel Plated
Dielectric
Delrin
Pin
Brass, Gold Plated
Mechanical
Durability
500 mating cycles
▣
Documents
Certificate of Conformance
REACH Policy and Statement
RoHS Certificate of Compliance
▣
Alternatives
◄
►
BN17-10-A06-Z
BNC 12G SDI Right Angle Plug to Jack Adaptor, Nickel Plated, 75 ohms
