Coaxial Connector MA02-0400-C01-R - SMA Reverse Polarity Crimp Bulkhead Jack, Gold Plated, 8mm Hex Flange, RG142, RG223, RG400

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

MA02-0400-C01-R

Series

SMA Reverse Polarity

Style

Jack - Bulkhead

Description

SMA Reverse Polarity Crimp Bulkhead Jack, Gold Plated, 8mm Hex Flange, RG142, RG223, RG400

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1000 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

12.4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Gold Plated

Locknut

Brass, Gold Plated

Washer

SS41, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Solder

Durability

500 mating cycles

Fixing Method

Crimp

Locknut Torque

0.9 to 1.1Nm (8-10 in-lbs)

Maximum Panel Thickness

2.50mm

▣

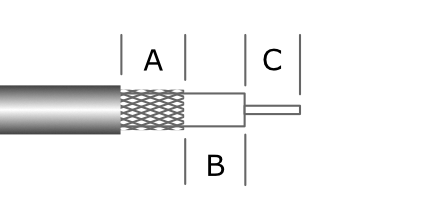

Cable Preparation

A =	8.00mm
B =	2.50mm
C =	2.50mm

▣
