Product Overview

Part Number

MA02-D316-C06

Series

Style

Jack - Bulkhead

Description

SMA Crimp Bulkhead Jack, Nickel Plated, 11mm Hex Flange, RD316

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

750 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

12.4 GHz

Working Voltage

335 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Beryllium Copper, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Locknut

Brass, Nickel Plated

O Ring

Rubber

Washer

SS41, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Solder

Durability

500 mating cycles

Fixing Method

Crimp

Maximum Panel Thickness

2.50mm

▣

Cable Preparation

A =	0.276in
B =	0.098in
C =	0.098in

▣

Tooling

Crimp Die Sizes

0.151in hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	0
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£6.98 each
10 off	£5.58 each
50 off	£5.07 each
100 off	£4.82 each
300 off	£4.59 each

▣

Order

UK stock	0
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£6.98 each
10 off	£5.58 each
50 off	£5.07 each
100 off	£4.82 each
300 off	£4.59 each

▣

Product Overview

Part Number

MA02-D316-C06

Series

Style

Jack - Bulkhead

Description

SMA Crimp Bulkhead Jack, Nickel Plated, 11mm Hex Flange, RD316

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

750 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

12.4 GHz

Working Voltage

335 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Beryllium Copper, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Locknut

Brass, Nickel Plated

O Ring

Rubber

Washer

SS41, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Solder

Durability

500 mating cycles

Fixing Method

Crimp

Maximum Panel Thickness

2.50mm

▣

Cable Preparation

A =	0.276in
B =	0.098in
C =	0.098in

▣

Tooling

Crimp Die Sizes

0.151in hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

RD316 Coaxial Cable, supplied as a 98 ft coil

SMA Dust Cap, front view

SMA Dust Cap, IP67, Black Chrome

▣

Alternatives

◄

►

SMA Waterproof Crimp Bulkhead Jack, terminated on cable

MA02-3162-C01WP

SMA Waterproof Crimp Bulkhead Jack, IP68, Gold Plated, RD316

SMA Crimp Bulkhead Jack, terminated on cable

MA02-D316-C01-8

SMA Crimp Bulkhead Jack, Gold Plated, 8mm Hex Flange, RD316

SMA Crimp Bulkhead Jack, terminated on cable

MA02-D316-C06-8

SMA Crimp Bulkhead Jack, Nickel Plated, 8mm Hex Flange, RD316

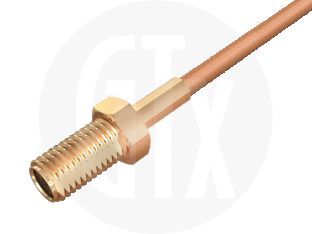

SMA Crimp Jack, terminated on cable
