Product Overview

Part Number

NT06-0402-R49

Series

Style

Description

N Type Solder Flange Jack, Tri Alloy Plated, RG402, .141 semi-rigid

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

2500 Volts RMS Maximum

Impedance

50 ohms

Working Voltage

1500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Backnut

Brass, Gold Plated

Body

Brass, CTZ Tri-Alloy Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Mechanical

Cable Retention

272N

Contact Retention

27N

Durability

500 mating cycles

Fixing Method

Solder

▣

Cable Preparation

A =	0.00mm
B =	3.00mm

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	33
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£39.87 each
10 off	£31.85 each
50 off	£28.96 each
100 off	£27.51 each
300 off	£26.19 each

▣

Order

UK stock	33
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£39.87 each
10 off	£31.85 each
50 off	£28.96 each
100 off	£27.51 each
300 off	£26.19 each

▣

Product Overview

Part Number

NT06-0402-R49

Series

Style

Description

N Type Solder Flange Jack, Tri Alloy Plated, RG402, .141 semi-rigid

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

2500 Volts RMS Maximum

Impedance

50 ohms

Working Voltage

1500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Backnut

Brass, Gold Plated

Body

Brass, CTZ Tri-Alloy Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Mechanical

Cable Retention

272N

Contact Retention

27N

Durability

500 mating cycles

Fixing Method

Solder

▣

Cable Preparation

A =	0.00mm
B =	3.00mm

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

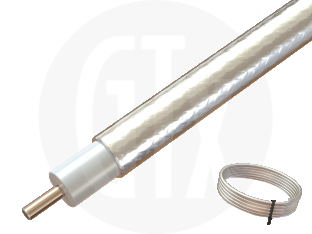

RG402 Conformable Coaxial Cable, supplied as a 30 metre coil

CX50-402CFEP-6-30

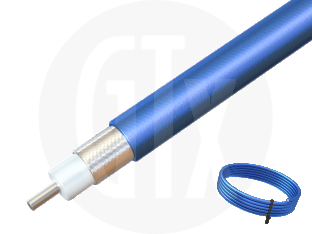

RG402 Conformable FEP Coaxial Cable, supplied as a 30 metre coil

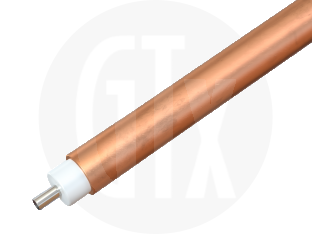

SR141C Semi-Rigid Coaxial Cable, supplied in increments of 1 metre

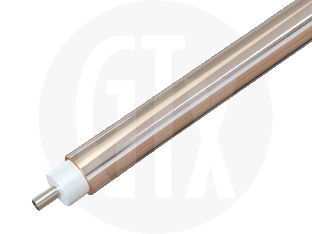

SR141CT Semi-Rigid Coaxial Cable, supplied in increments of 1 metre
