Product Overview
Part Number
CX50-174-30
Description

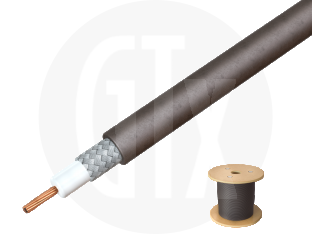

RG174 Coaxial Cable, supplied as a 30 metre coil
Specifications
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Capacitance
101.1 pF/m
Impedance
50 ohms
K1 (100m)
2.44688
K2 (100m)
0.0041328
Recommended Frequency
DC to 1 GHz
Velocity Of Propagation
66%
Environmental
RoHS Compliant
Yes
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Stranded Copper Clad Steel
Dielectric
Polyethylene
Jacket
Black PVC
Overall Braid
Tinned Copper
Mechanical
Bending Radius Flexing
26mm
Bending Radius Static
6.4mm
Centre Conductor Diameter
7 x 0.16mm (0.48mm)
Dielectric Diameter
1.52mm
Jacket Diameter
2.80mm
Outer Conductor 1 Diameter
1.93mm
Weight
15 gms/m
Documents
Order
UK stock 752
Pending () 0
Minimum order quantity 1
Pricing

Length: 30

1 off £17.01 each
3 off £16.04 each
5 off £14.67 each
10 off £14.64 each
30 off £14.63 each
