Coaxial Connector BN15-1673-C23-Z - BNC 12G SDI Crimp Plug, Black Chrome Plated, Belden 7731A, 7431R

Browse for other connectors

▣

Product Overview

Part Number

BN15-1673-C23-Z

Series

BNC 12G SDI

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Black Chrome Plated, Belden 7731A, 7431R

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Black Chrome Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Gasket

PVC

Brass, Gold Plated

Spring

SK5, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Captive Contact

Yes

Contact Gender

Male

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

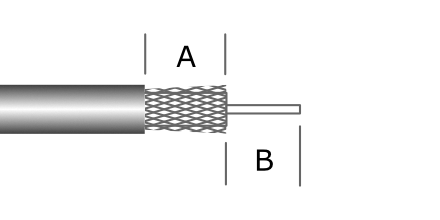

Cable Preparation

A =	11.30mm
B =	0.00mm
C =	3.20mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

View tooling

9.75mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	543
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	$5.62 each
10 off	$4.49 each
50 off	$4.09 each
100 off	$3.88 each
300 off	$3.70 each

▣

Order

UK stock	543
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	$5.62 each
10 off	$4.49 each
50 off	$4.09 each
100 off	$3.88 each
300 off	$3.70 each

▣

Product Overview

Part Number

BN15-1673-C23-Z

Series

BNC 12G SDI

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Black Chrome Plated, Belden 7731A, 7431R

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Black Chrome Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Gasket

PVC

Brass, Gold Plated

Spring

SK5, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Captive Contact

Yes

Contact Gender

Male

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	11.30mm
B =	0.00mm
C =	3.20mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

View tooling

9.75mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

GT-0628-BN15

BNC Mounting Tool - Hand Tool for mating and unmating of BNC Plugs
