Part Number

HD15-0628-C06-Z

Series

HD BNC (Micro BNC)

Style

Plug - Straight

Description

HD BNC 12G SDI Crimp Plug, Gigatronix HD75-0628 (0.6/2.8), UHD75-0729 (0.7/2.9)

Primary Fixing

Crimp

A precision 75 ohm HD BNC Crimp Plug designed to carry 12G-SDI (Serial Digital Interface) 4K signals on a single channel.

Designed to suit cables types; Gigatronix HD75-0628, UHD75-0729, Belden 1855ENH, Draka 0.6/2.8 and HD PRO 50 UHD.

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Beryllium Copper, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Male

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	7.50mm
B =	2.10mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

5.41mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	83
Taiwan stock	497
Pending (details)	1500
Minimum order quantity	1

▣

Pricing

1 off	€7,01 each
10 off	€5,59 each
50 off	€5,09 each
100 off	€4,83 each
300 off	€4,60 each

▣

Order

UK stock	83
Taiwan stock	497
Pending (details)	1500
Minimum order quantity	1

▣

Pricing

1 off	€7,01 each
10 off	€5,59 each
50 off	€5,09 each
100 off	€4,83 each
300 off	€4,60 each

▣

Product Overview

Part Number

HD15-0628-C06-Z

Series

HD BNC (Micro BNC)

Style

Plug - Straight

Description

HD BNC 12G SDI Crimp Plug, Gigatronix HD75-0628 (0.6/2.8), UHD75-0729 (0.7/2.9)

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Beryllium Copper, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Male

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	7.50mm
B =	2.10mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

5.41mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

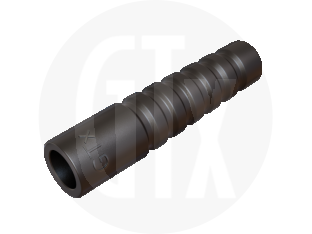

GSB-0628-0

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, Black

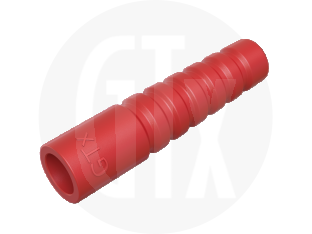

GSB-0628-2

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, Red

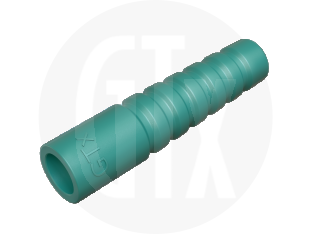

GSB-0628-5

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, Green

GSB-0628-6

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, Blue

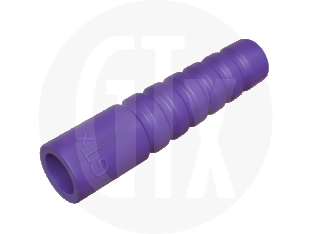

GSB-0628-7

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, Violet

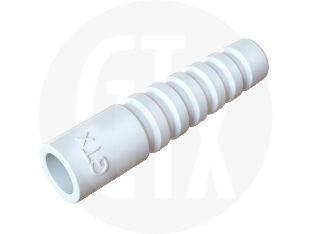

GSB-0628-9

Strain Relief Boot for SDI-0.6/2.8, 5.41mm Hex, White

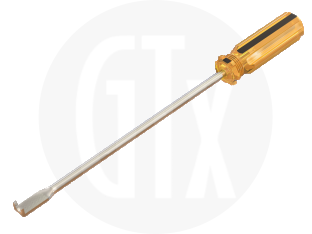

GT-0628-HD15

HD BNC Mounting Tool - Hand Tool for mating and unmating of HD BNC Plugs

HD75-0628-7-305

6G-SDI Video Cable, 0.6/2.8, Violet Jacket, supplied on 305 metre drums

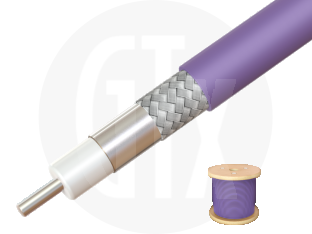

UHD75-0729-7-305
