Product Overview

Part Number

MA02-0174-C01-8

Series

SMA

Style

Jack - Bulkhead

Description

SMA Crimp Bulkhead Jack, Gold Plated, 8mm Hex Flange, RG174, RG316, LBC100

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

750 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

12.4 GHz

Working Voltage

335 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Gold Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Gold Plated

Locknut

Brass, Gold Plated

Washer

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp or Solder

Durability

500 mating cycles

Fixing Method

Crimp

Locknut Torque

0.9 to 1.1Nm (8-10 in-lbs)

Maximum Panel Thickness

2.50mm

▣

Cable Preparation

A =	5.50mm
B =	4.00mm
C =	2.50mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

3.25mm hex.

▣

Documents

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	1431
Taiwan stock	1000
Pending (details)	0
Minimum order quantity	1

▣

Pricing

1 off	€7,83 each
10 off	€6,25 each
50 off	€5,69 each
100 off	€5,41 each
300 off	€5,15 each

▣

Order

UK stock	1431
Taiwan stock	1000
Pending (details)	0
Minimum order quantity	1

▣

Pricing

1 off	€7,83 each
10 off	€6,25 each
50 off	€5,69 each
100 off	€5,41 each
300 off	€5,15 each

▣

Product Overview

Part Number

MA02-0174-C01-8

Series

SMA

Style

Jack - Bulkhead

Description

SMA Crimp Bulkhead Jack, Gold Plated, 8mm Hex Flange, RG174, RG316, LBC100

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

750 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

12.4 GHz

Working Voltage

335 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Gold Plated

Contact

Phosphor Bronze, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Gold Plated

Locknut

Brass, Gold Plated

Washer

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp or Solder

Durability

500 mating cycles

Fixing Method

Crimp

Locknut Torque

0.9 to 1.1Nm (8-10 in-lbs)

Maximum Panel Thickness

2.50mm

▣

Cable Preparation

A =	5.50mm
B =	4.00mm
C =	2.50mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

3.25mm hex.

▣

Documents

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

CX50-174-30

RG174 Coaxial Cable, supplied as a 30 metre coil

CX50-316-30

RG316 Coaxial Cable, supplied as a 30 metre coil

CX50-LBC100-30

LBC100 Low Loss Coaxial Cable, supplied as a 30 metre coil

▣

Alternatives

◄

►

SMA Crimp Bulkhead Jack, terminated on cable

MA02-0174-C01

SMA Crimp Bulkhead Jack, Gold Plated, 11mm Hex Flange, RG174, LBC100, RG316

SMA Waterproof Crimp Bulkhead Jack, terminated on cable

MA02-3161-C01WP

SMA Waterproof Crimp Bulkhead Jack, IP68, Gold Plated, RG174, LBC100, RG316

MA15-0174-C06

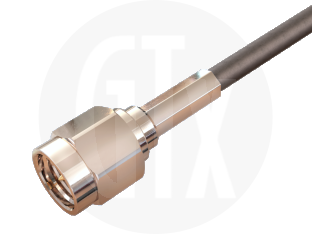

SMA Crimp Plug, Nickel Plated, RG174, LBC100, RG316
