Coaxial Connector BN02-0179-C06-1-Z - BNC 12G SDI Crimp Bulkhead Jack, Circular Flange, Hex. Locknut, Gigatronix UHD75-179D, Belden 179DT

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

BN02-0179-C06-1-Z

Series

BNC 12G SDI

Style

Jack - Bulkhead

Description

BNC 12G SDI Crimp Bulkhead Jack, Circular Flange, Hex. Locknut, Gigatronix UHD75-179D, Belden 179DT

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Integral Contact

Phosphor Bronze, Gold Plated

Locknut

Brass, Nickel Plated

Brass, Gold Plated

Washer

Phosphor Bronze, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Female

Contact Termination

Solder

Durability

500 mating cycles

Fixing Method

Crimp

Maximum Panel Thickness

4.00mm

▣

Cable Preparation

A =	5.00mm
B =	3.50mm
C =	2.00mm

▣

Tooling

Crimp Die Sizes

0.72mm sq.

View tooling

3.25mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	138
Taiwan stock	10
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£9.70 each
10 off	£7.75 each
50 off	£7.05 each
100 off	£6.69 each
300 off	£6.38 each

▣

Order

UK stock	138
Taiwan stock	10
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£9.70 each
10 off	£7.75 each
50 off	£7.05 each
100 off	£6.69 each
300 off	£6.38 each

▣

Product Overview

Part Number

BN02-0179-C06-1-Z

Series

BNC 12G SDI

Style

Jack - Bulkhead

Description

BNC 12G SDI Crimp Bulkhead Jack, Circular Flange, Hex. Locknut, Gigatronix UHD75-179D, Belden 179DT

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Integral Contact

Phosphor Bronze, Gold Plated

Locknut

Brass, Nickel Plated

Brass, Gold Plated

Washer

Phosphor Bronze, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Female

Contact Termination

Solder

Durability

500 mating cycles

Fixing Method

Crimp

Maximum Panel Thickness

4.00mm

▣

Cable Preparation

A =	5.00mm
B =	3.50mm
C =	2.00mm

▣

Tooling

Crimp Die Sizes

0.72mm sq.

View tooling

3.25mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

CX75-179-30

RG179 Coaxial Cable, supplied as a 30 metre coil

GSB-0174A-0

Strain Relief Boot for RG174/179, 3.25mm Hex, Black

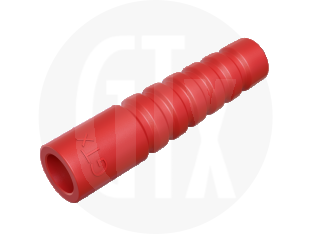

GSB-0174A-2

Strain Relief Boot for RG174/179, 3.25mm Hex, Red

GSB-0174A-5

Strain Relief Boot for RG174/179, 3.25mm Hex, Green

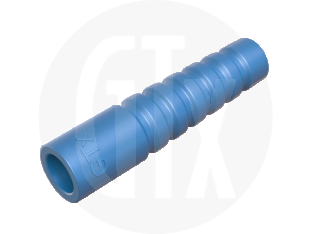

GSB-0174A-6
