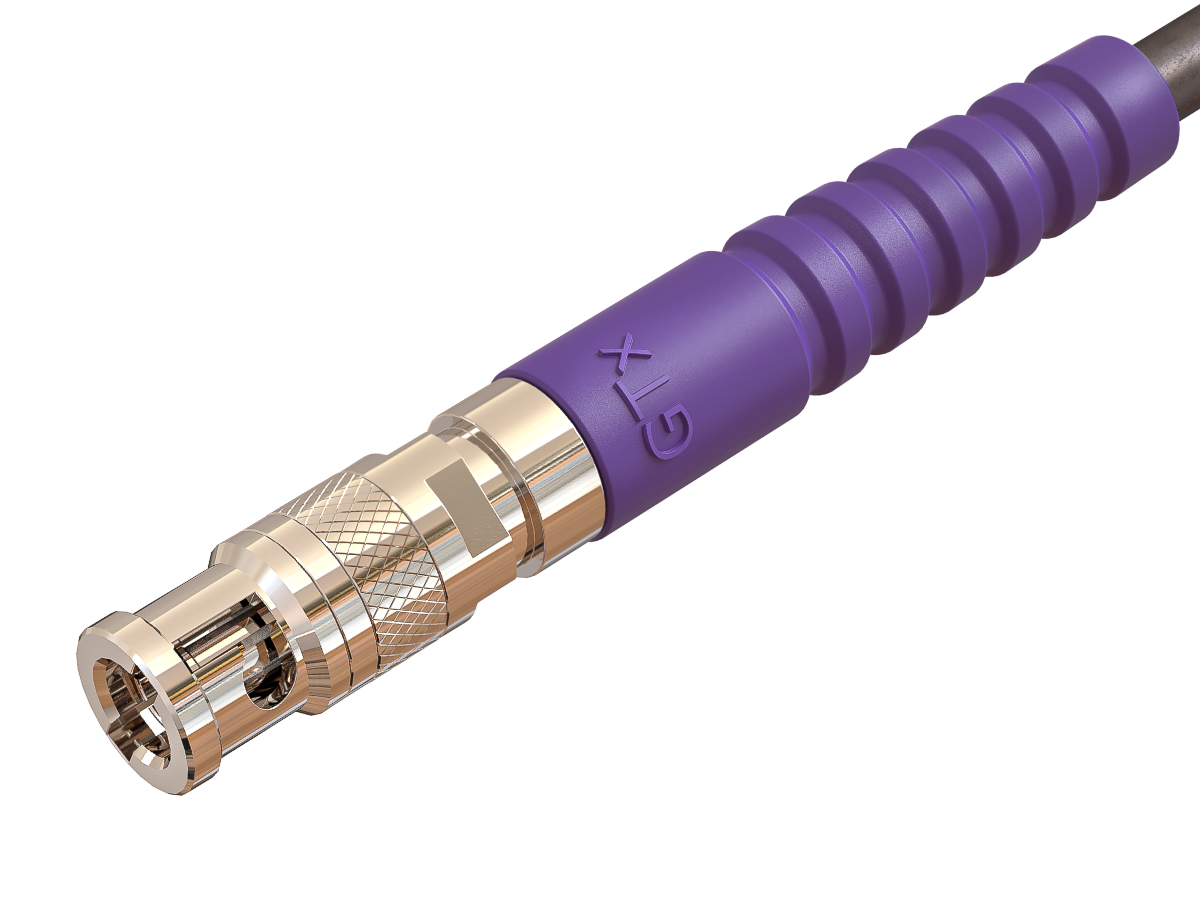

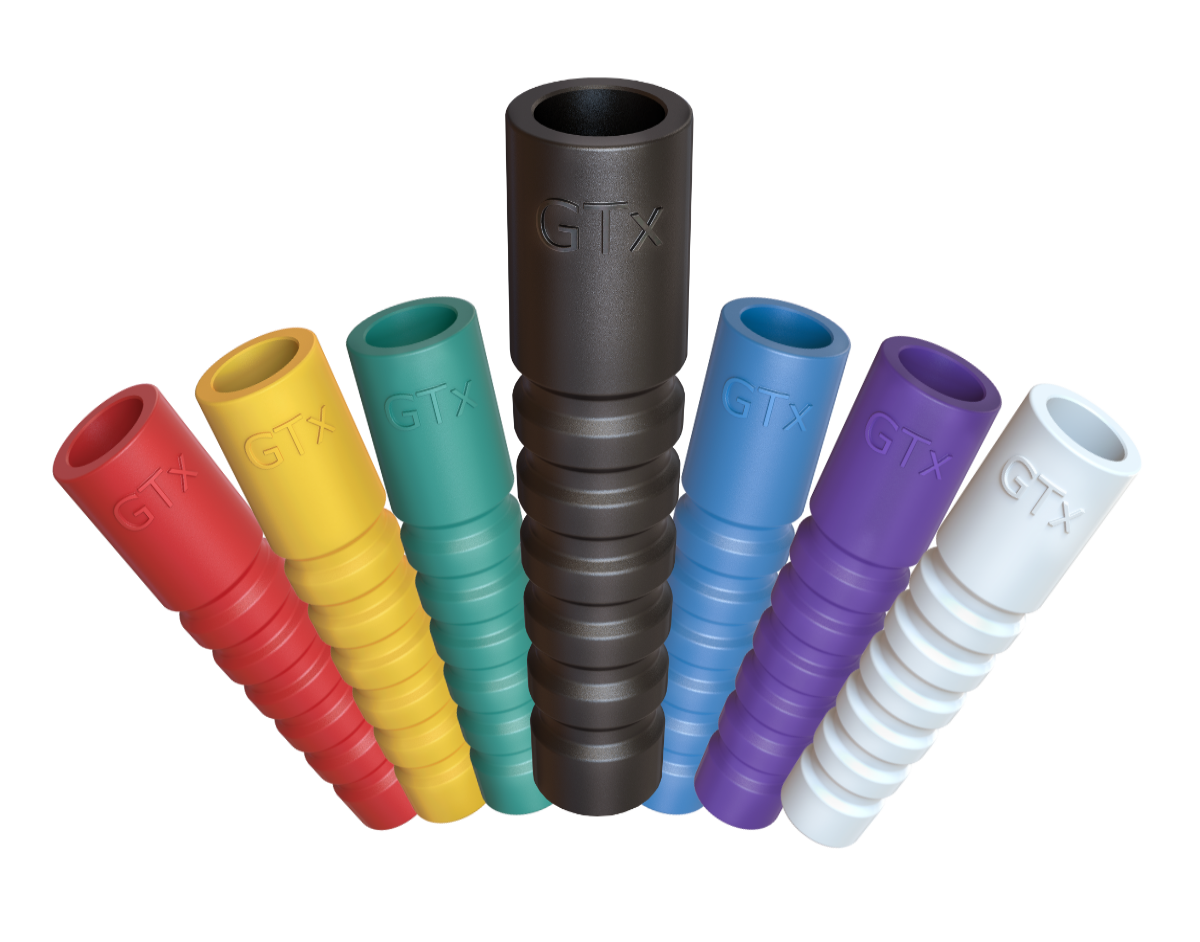

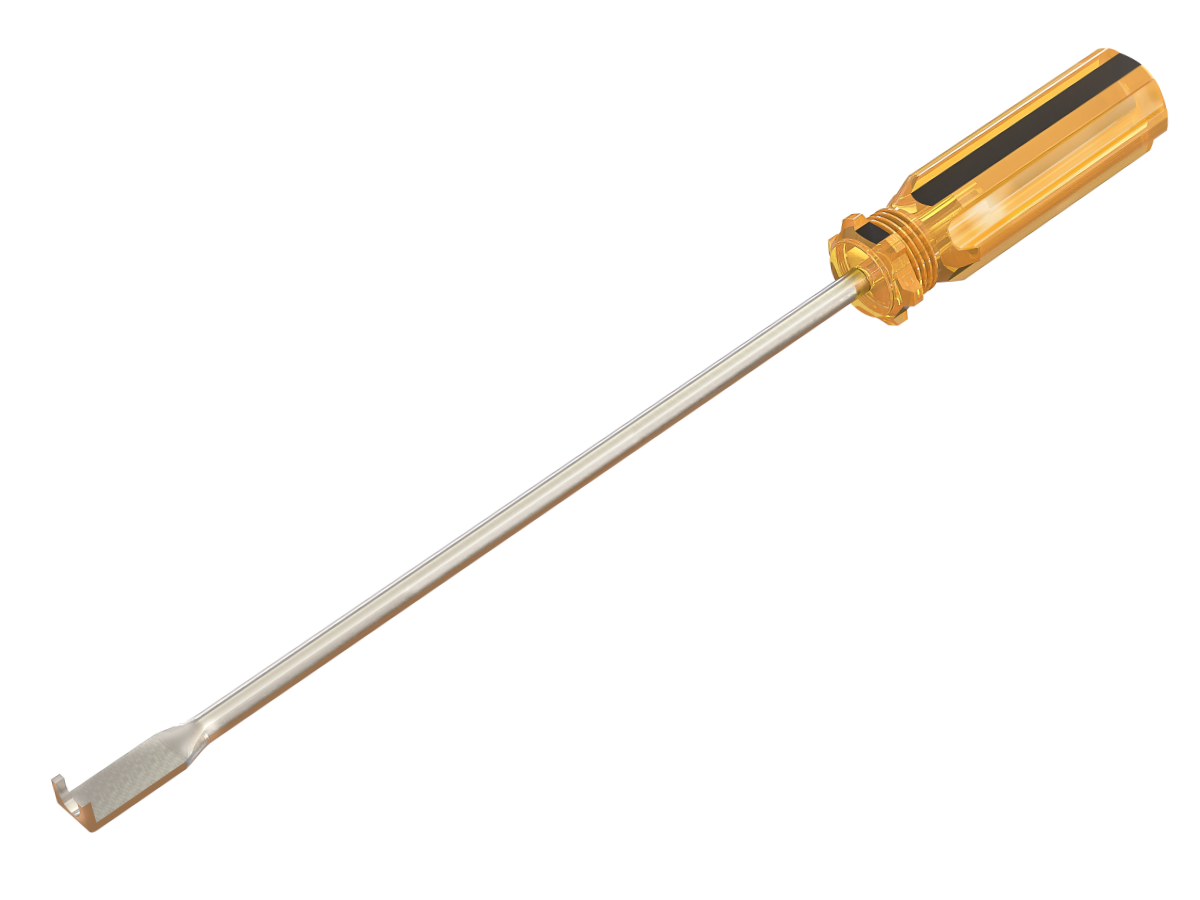

| HD BNC (Micro BNC) 12G SDI Crimp Plugs | New HD BNC Strain Relief Boots | Extraction Tool for HD BNC Plugs |
| Designed to fit our full range of 6G and 12G SDI cables, as well as industry-standard Belden types including 1855/4855, 1505/4505,and 1694/4694. These compact connectors deliver reliable performance for high-density broadcast applications. | An innovative new accessory, strain relief boots for HD BNC on 1855/4855! A simple yet effective way to improve flexibility and reduce stress at the cable exit, helping to extend the lifespan of your assemblies. | Our newly introduced HD BNC Extraction Tool received a great deal of interest — in fact, all samples brought to the show were quickly taken by visitors. Designed for safe and efficient connector removal, this tool is now available from stock for orders. |
| 6G and 12G 4K Coaxial Cables | BNC 12G SDI Crimp Plugs | Custom Coaxial Cable Assemblies |
| Available in Mini RG59, RG59 and RG6 sizes. You can find a full cable to connector cross reference and maximum transmission distances guide below. | Compatible with both our 6G and 12G SDI cable range and industry-standard types such as 1855/4855, 1505/4505, 1694/4694, these connectors deliver dependable 12G performance and secure mechanical fit. | Our online configurator makes it easy to specify custom assemblies for your projects. A popular choice at the show was the HD BNC Plug to BNC Jack on 1 foot of our flexible 12G M59XF cable. |
| 12G 4K Coaxial Connectors | 12G 4K Coaxial Cables |
| Our Precision Broadcasting Products brochures are available for download in pdf; 12G 4K Coaxial Connectors and 12G 4K Coaxial Cables. |
| Cable to Connector Cross Reference |
| Gigatronix Cable # | Canare Ref # | 12G Connectors |
| HD75-M59 UHD75-M59 | Canare L-2.5CHD | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| HD75-6 UHD75-6 | Canare L-4.5CHD | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-M59XF | Canare L-2.5CHWS | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| HD75-6 UHD75-6 | Canare L-3CFW | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-6XF | Canare L-4.5CHWS | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| Gigatronix Cable # | Belden Ref # | 12G Connectors |
| HD75-M59 | 1855A | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-179D | RG179DT | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-M59 | 4855R/4855P | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-M59XF | N/A - 4855 + extra flexible jacket | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-59 | 4505R/4505P | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-59XF | 1505F + (12G compliant) | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-6 | 4694R/4694P | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
| UHD75-6XF | 4694F | BNC Crimp Plug HD BNC Crimp Plug All Connectors |
